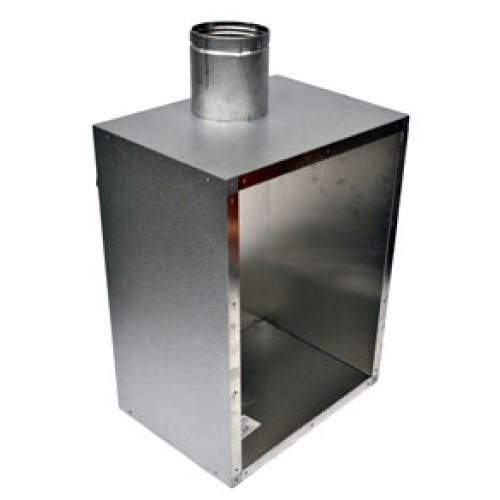

IL Recessed Gas Box
- Code:
- 0404905
Description
Internal measurements = W407mm H560mm D317mm
This Box is a deeper version of the Freestanding Gas Fire Flue Box, and its installation requirements are the same.
However, being deeper it can also be used to fit within the thickness of an internal masonry or plaster and timber stud wall so that the Gas Fire is flush to the wall in one room with the IL Gas Vent behind the wall.
It must not be used to penetrate an external wall.
Although the Flue Gas Collector is designed to enable a chimney serving a gas fire to be lined, it is limited to appliances supplied with a closure plate.
Where the appliance features a projection normally accommodated within the builders opening,
the Recessed Gas Flue Box may be used for the same purpose. It would be located in an existing builders opening and under a masonry chimney. Connection between the Box and a 125mm, BS EN 1856-2 approved flexible stainless steel liner,
must be made with the IL Adaptor to Flexible, available from the IL Gas Vent system range, item Code No. 0471605.
